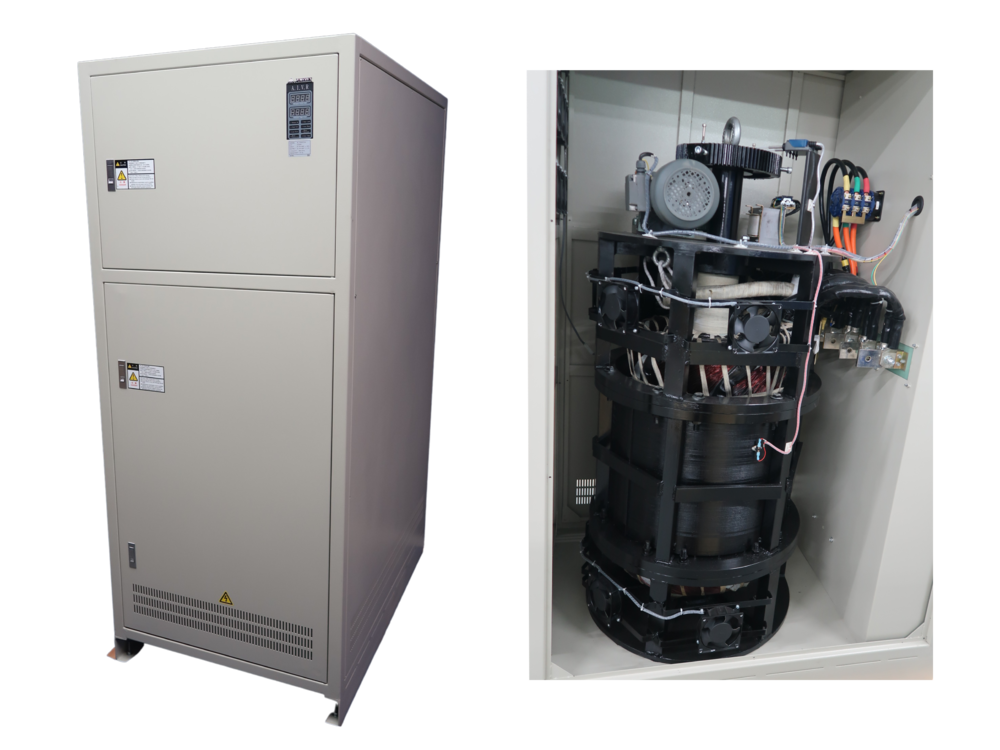

lnduction Electronic A.I.V.R. (PL)
Clear Meter Design |
|

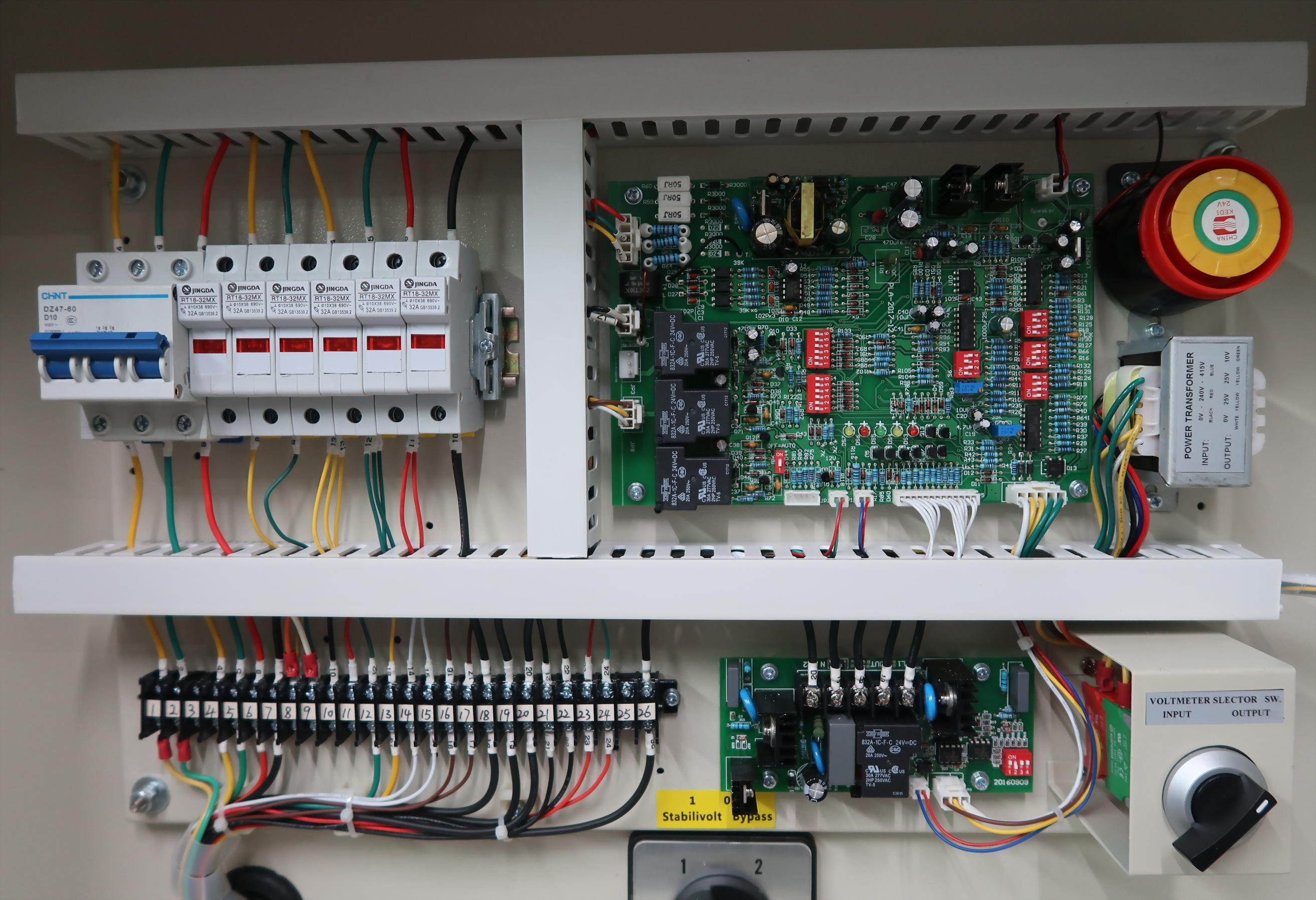

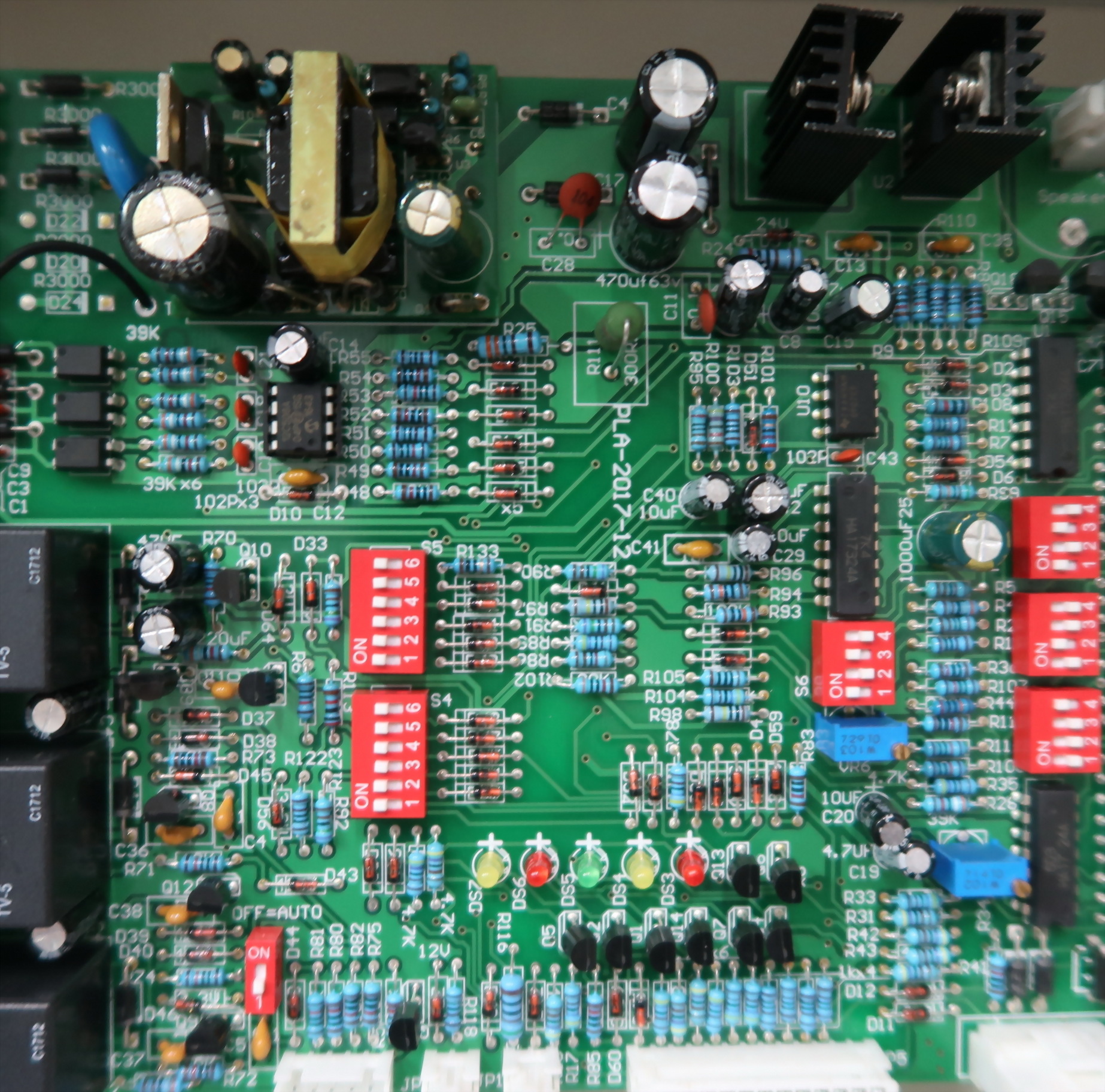

Excellent and Precision Main Control Circuit |
|
Precision Controlled Protecting Device |
![]() |
|
![]() |
|
![]() |

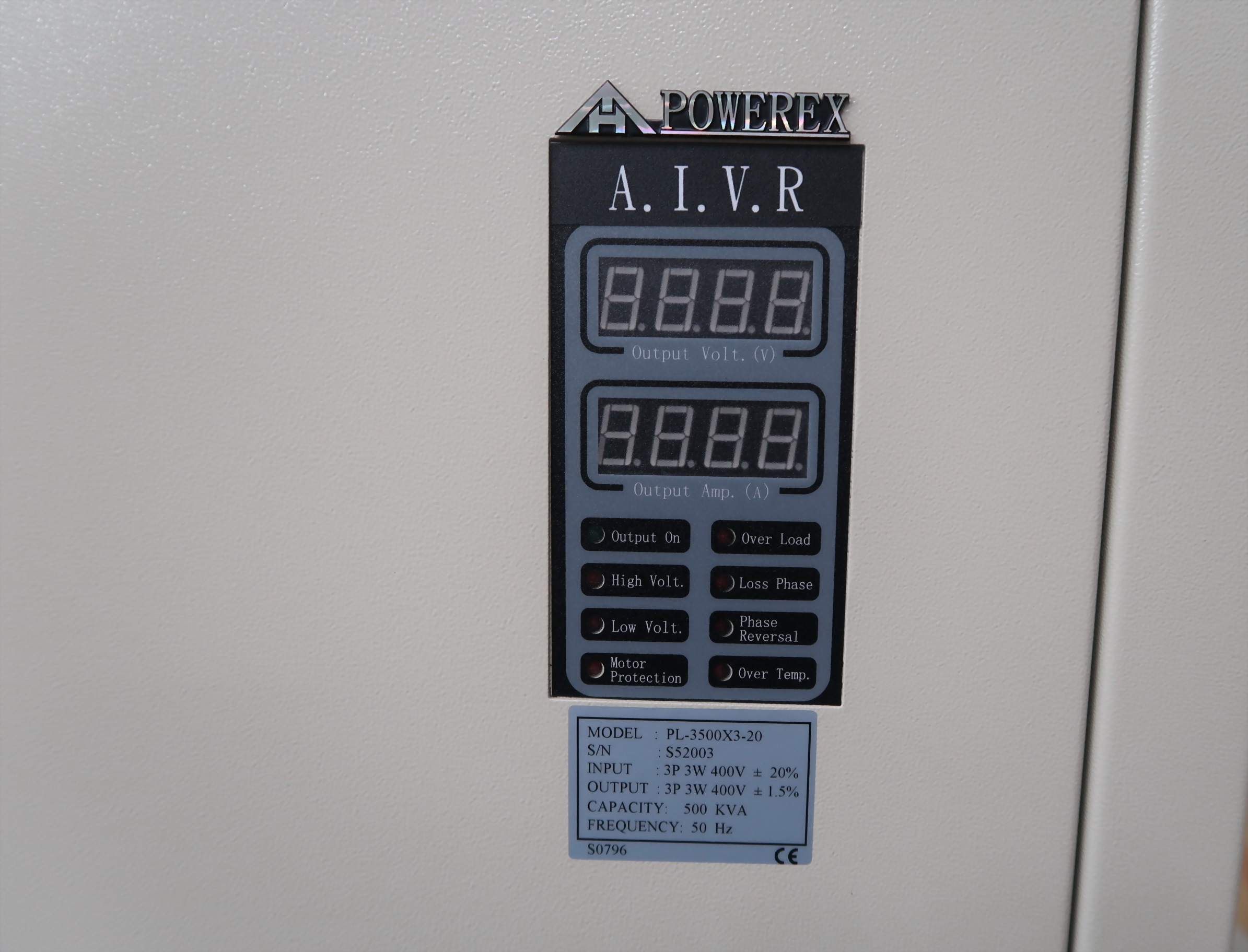

Wide-angle meter design,output voltage and current can be clearly identified |
|
Modular exchangeable control mode design-a more humanized design concept |
|

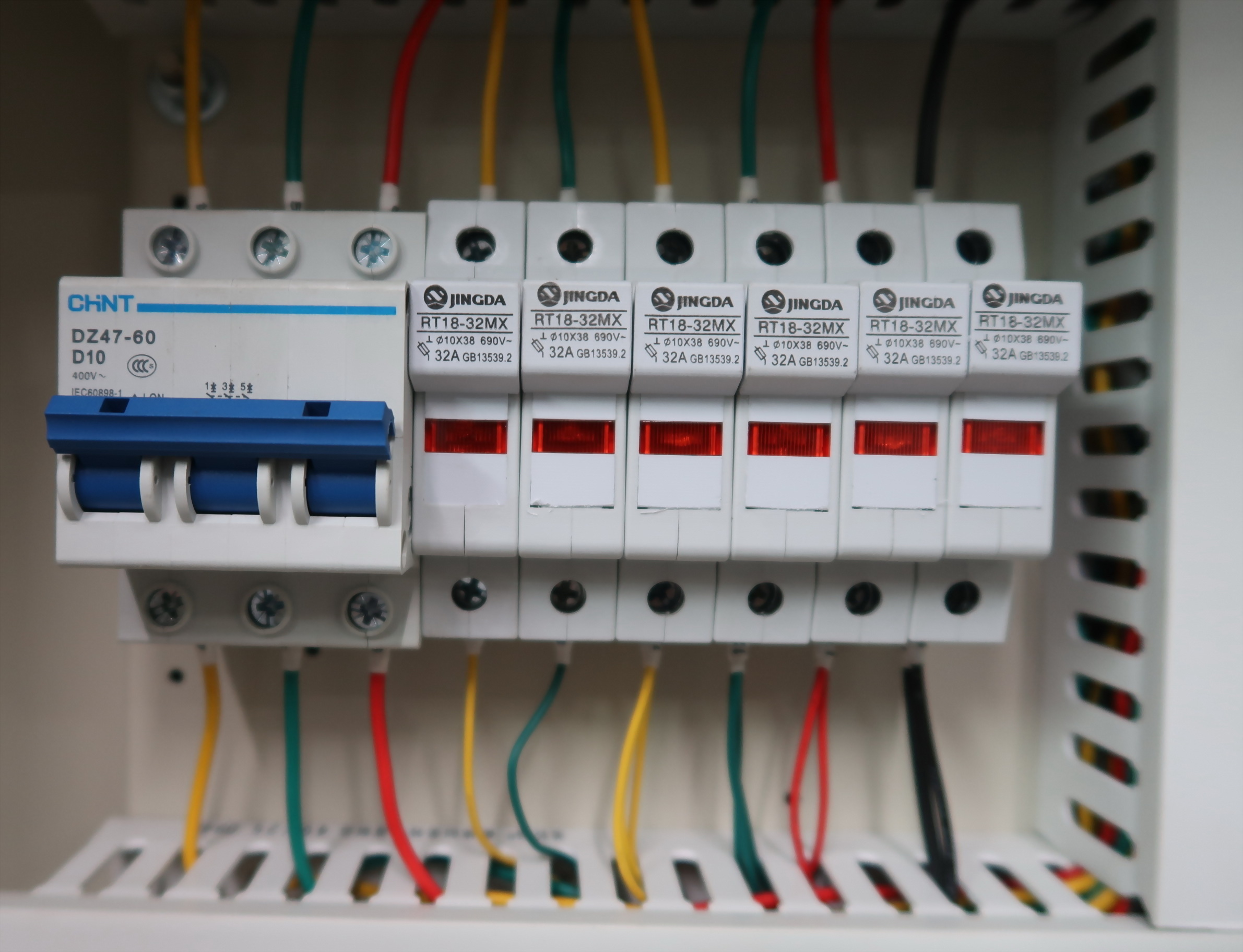

Main control elements are equipped with over-current protecting switches and fuses |
|
|
|
|
|
Alert Dry Contact |
|
Self-Detecting |
|

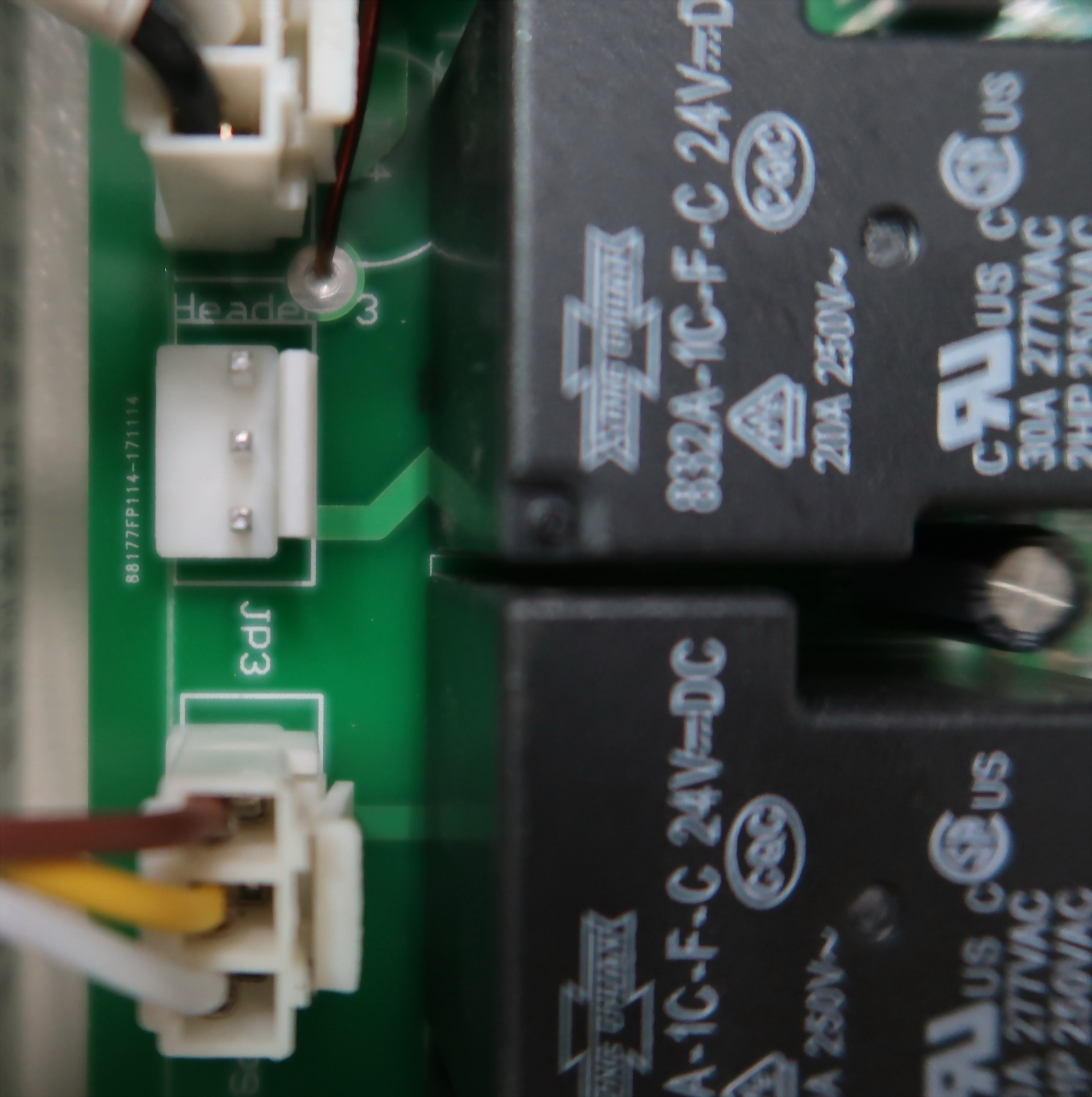

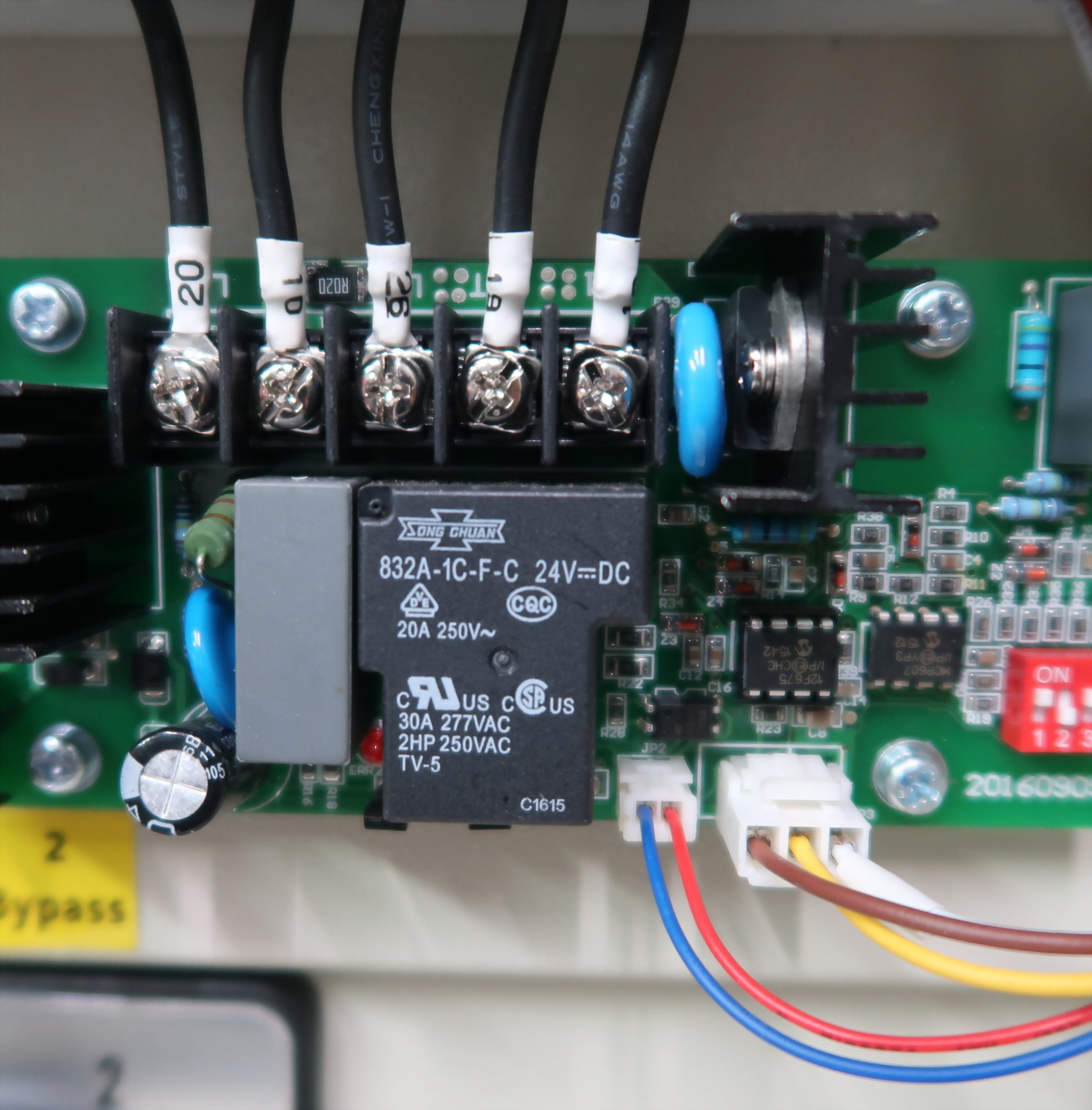

Motot Driver PCB |
![]() |
|
![]() |
|
![]() |
Equipped with alert dry contact for connecting externally circuit to control room for easy monitor |
|
At each starting, it can rapidly detect the present situation to be safe |
|
With overload protection circuit, failure rate can be reduced |
|
|
|
|
|

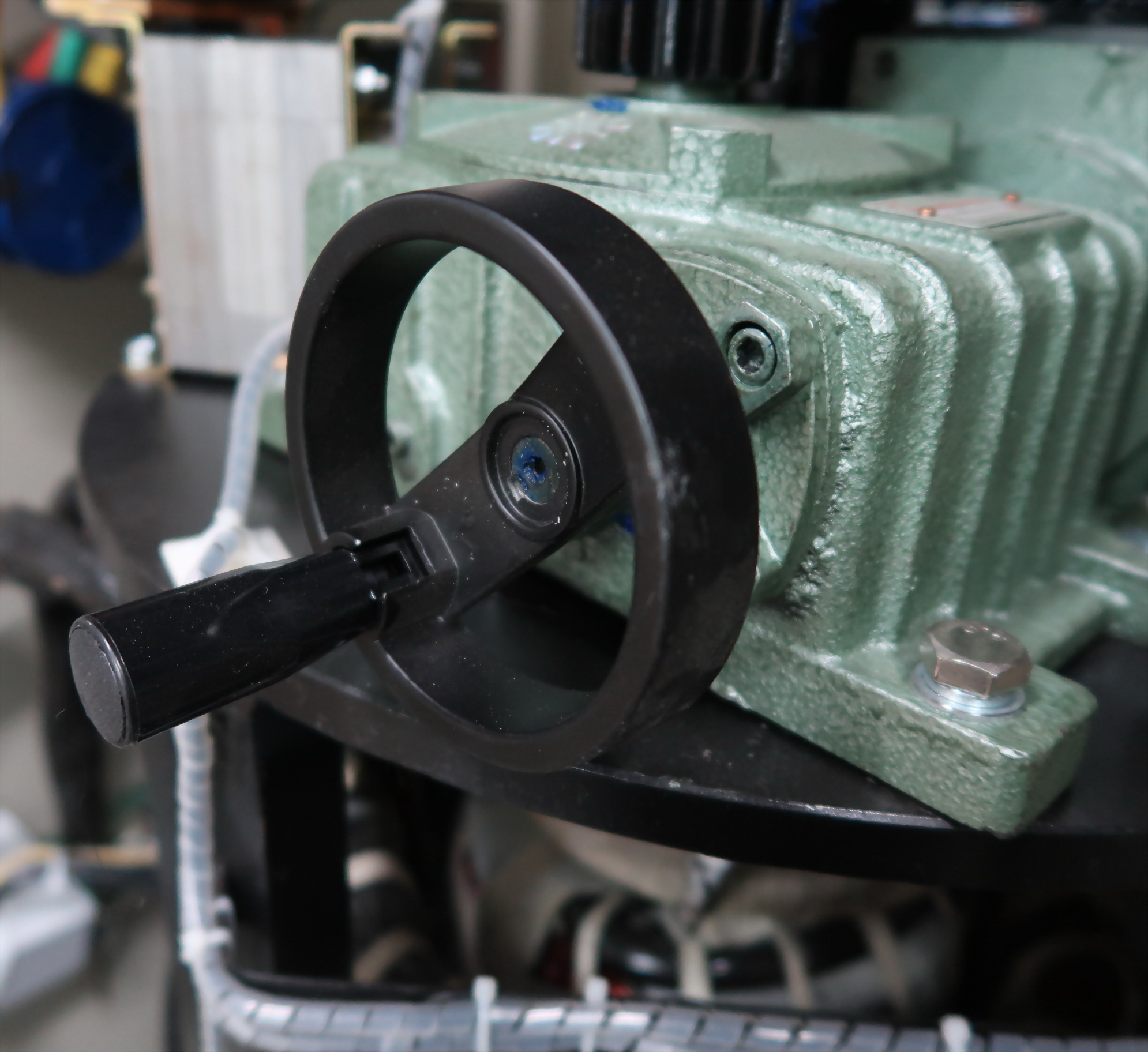

Manual Adjusting Device |
|
Programmable Setting |
|

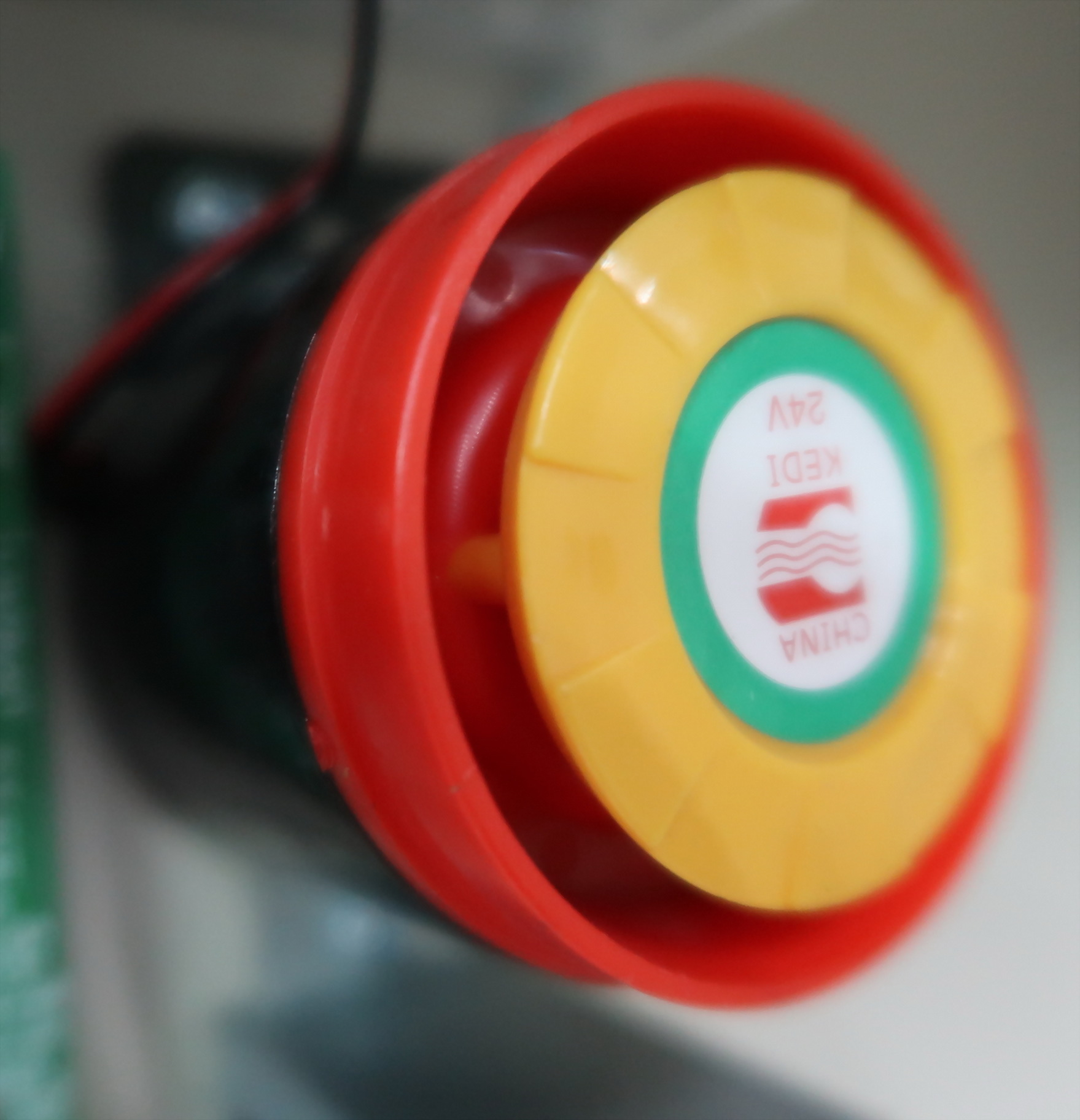

Audio Alarm Device |
![]() |
|
![]() |
|
![]() |
After control system switched off, this device can be used to adjust voltage manually to needed value |
|

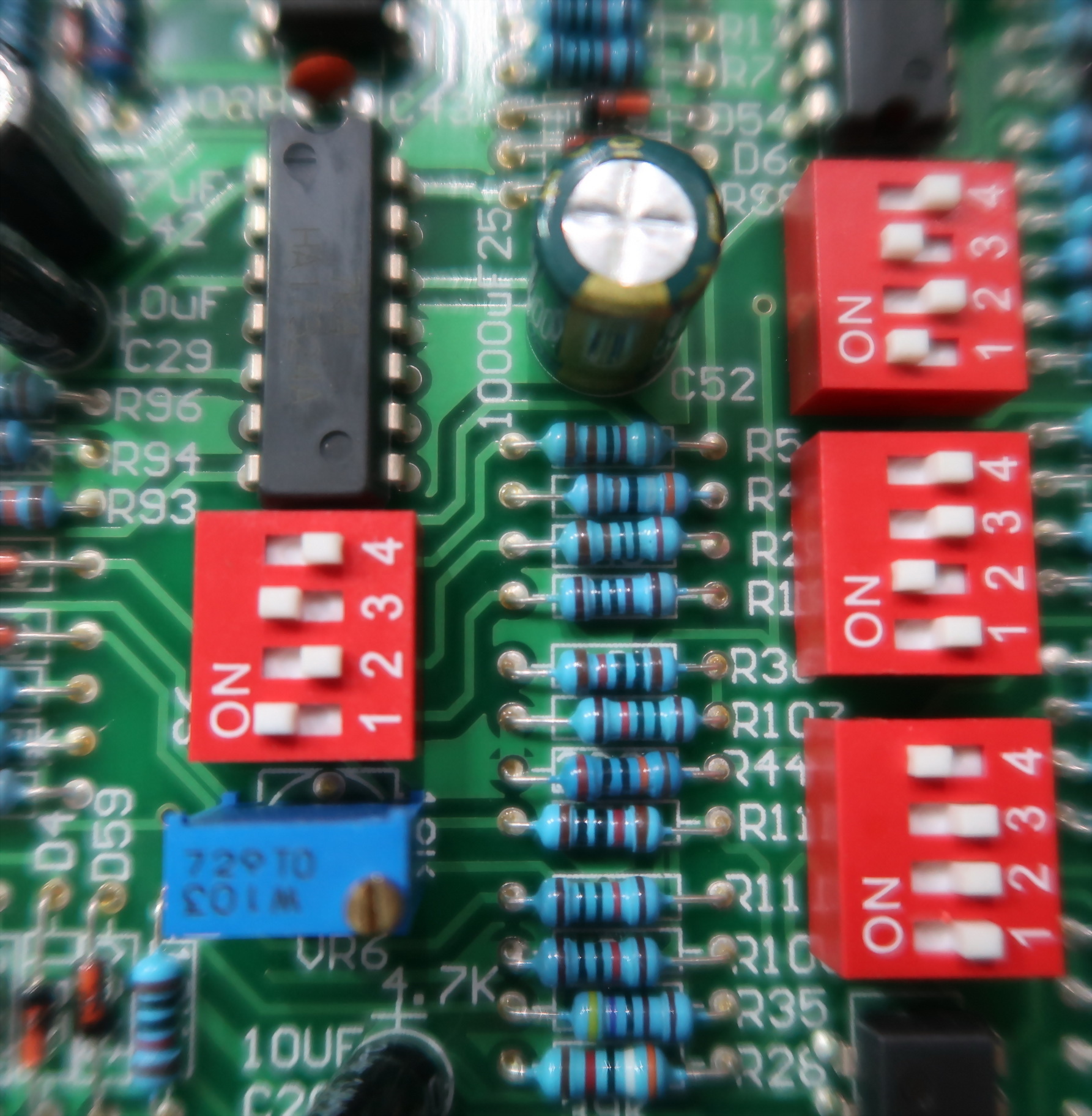

Adopt multi-layer big range preset switch to meet the optimal needs |
|
At abnormal, three is audio alarm and action of alert dry contact |
Model No. (PL-) |
3150 |
3200 |
3250 |
3300 |
3320 |
3350 |
3400 |
3500 |
3600 |
3750 |
Capacity (KVA) |
150 |
200 |
250 |
300 |
320 |
350 |
400 |
500 |
600 |
750 |
Voltage |
X2:3Ø3W 200V,220V,230V,240V system (IP and O/P are the same) X3:3Ø3w 380V, 400V system (I/P and OP are the same) |
|||||||||
Frequency |
50 or 60Hz ±5% |
|||||||||
Input Range |
±20% (up to ±50 upon request) |
|||||||||
Output Range |
±10% adjustable |
|||||||||
Output Accuracy |
Within±1.0% |
|||||||||
Efficicncy |
> 99% |
|||||||||
Noise Level |
< 60 dB |
|||||||||
Waveform Distortion |
No distortion (the same with input wavefom) |
|||||||||
Overload Capacity |
200% for 10 second |
|||||||||
Fault Warming |
When volage too high, too low, phase failure, phase reverse and over temperanure, in will alarm automatical |
|||||||||
Panel Indicator |
Ouput volmeter, output ammeter, faulte indicator |
|||||||||
Environment |
Temperature: 0°C~45°C Humidity: 20% ~ 90% RH(Non-Condensing) |
Solid mechanism and
durable
Digital CPU programmable control
Adopt no-contact
voltage adjustment
Continuous stepless
voltage regulating design
Output voltage in
linear voltage increased and decreased control
Output voltage free of
noise interference
No distortion
Self-detecting function
Alarm for abnormal
high/low voltage output
Alarm for abnormal
phase loss and phase reverse
Alarm for abnormal
temperature
Allowed for externally
connecting tripping switch for performing cut-off power function
Digital displayed output voltage and current
Efficiency higher than 98%
![]() |
![]() |
![]() |
Production Line |
Large-Scale Equipment |
Automatizing Production Line |
![]() |
![]() |
![]() |
Petrochemical Industry |
Shipping Dock |
Communicating Equipment |
